Part Numbers and Ordering
Standalone Units
The Boreas is supplied in an Evaluation Kit that contains everything required to get started operating the system right away. The Evaluation Kit is supplied in a rugged transport case to protect the equipment during transit.
| Part - Standalone Unit | Part - Evaluation Kit | Description |
|---|---|---|
| BOREAS-D50-X20P | BOREAS-D50-X20P-EK | Boreas D50 GNSS/INS with Ublox X20P GNSS receivers |
| BOREAS-D50-MX5 | BOREAS-D50-MX5-EK | Boreas D50 GNSS/INS with Septentrio mosaic-X5 GNSS receivers |
Standalone Unit Part Numbers
Evaluation Kit and Accessories

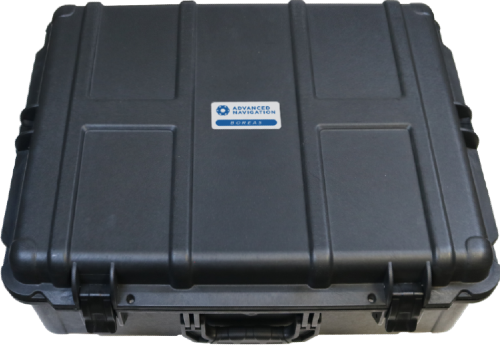

Boreas Evaluation Kit Transport Case
Each evaluation kit includes a Boreas unit, along with the accessories needed to set up and connect the unit. Accessories may be purchased separately.
Included accessories are listed in the table below.
| Part Number | Description | BOREAS-D50-X20P-EK | BOREAS-D50-MX5-EK |
|---|---|---|---|
| CABLE-FTDI | FTDI USB to RS232/RS422 (switchable) 1m cable | 1 | 1 |
| CABLE-BOREAS50-BREAKOUT | Breakout cable for Boreas 50 Series connector, 2m | 1 | 1 |
| SUPPLY-24V | 24V DC Power Supply | 1 | 1 |
| Calian TW3990XF-G |
Calian TW3990XF Full Band GNSS + L-Band (separate ground plane) dark gray, TNC connector |
2 | |
| Calian AJ977XF |
Calian AJ977XF Anti-Jam Multi-Constellation Triple-Band Antenna with TNC connector |
2 | |
| CALIAN-POLE-MOUNT | Pole mount bracket for Calian Antennas Black. Powder coated steel | 2 | 2 |
| BF046WS180427-03 | SMA to TNC 4m cable | 2 | 2 |
| BOREAS-50-EK-CASE | Evaluation Kit case for Boreas A50/D50 | 1 | 1 |
Part numbers for accessories in the Evaluation Kit
GNSS Receiver License Upgrades
These licenses are only applicable to units with a Trimble BD992 GNSS Receiver.
| Part Number | Description |
|---|---|
| BD992-LIC-10CM | Upgrade Trimble BD992 GNSS Receiver from 30 cm to 10 cm RTK accuracy. |
| BD992-LIC-8MM | Upgrade Trimble BD992 GNSS Receiver from 30 cm to 8 mm RTK accuracy. Add Galileo and BeiDou constellations. |
Part Numbers for GNSS Receiver Licence Upgrades
Accessories
The following additional accessories are associated with the Boreas.
| Part Number | Description | Boreas 50 |
|---|---|---|
| CABLE-BOREAS50-UNT-3M | Unterminated cable for use with Boreas 50, 3 metres. | Yes |
| OBDII-ODOMETER | OBDII Odometer Data Unit for providing accurate odometer data to vehicle-mounted units. | Yes |
| MOUNT-SUCT | Suction cup 5/8" GNSS antenna survey mount for easy installation of the GNSS antenna on vehicles. | Yes |
Part Numbers for Accessories
