Electronic Paper Display

Subsonus Tag contains an electronic paper display (screen). This technology allows for the screen to display information without the device powering the screen directly, therefore the screen will hold the last programmed image without drawing power, indefinitely.

The screen displays the configuration and status of the Subsonus Tag, including the following:

  1. Battery Charge

  2. Display Name

  3. Bluetooth Status

  4. Status Summery

  5. Battery Life/Charge Estimation

  6. Operation Mode

  7. Device Address

  8. Orientation Axis

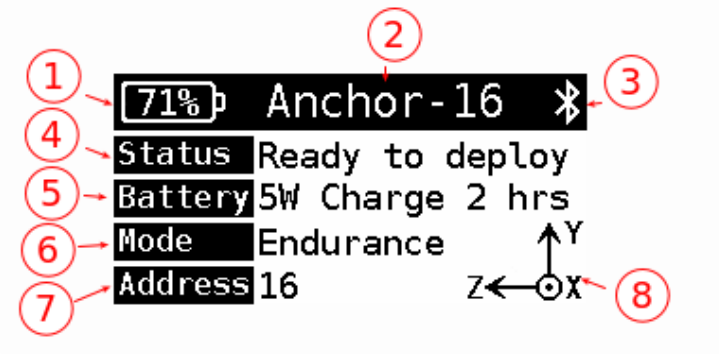

Electronic paper display screen
